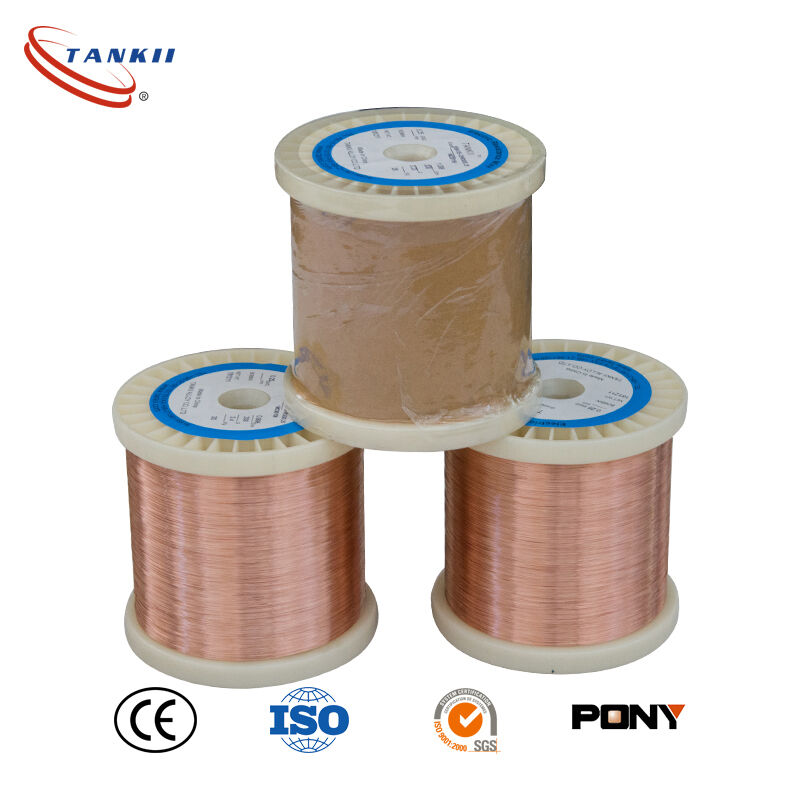

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

Détails de produit

Lieu d'origine: Chine

Nom de marque: Tankii

Certification: ISO 9001

Numéro de modèle: manganine 47

Conditions de paiement et d'expédition

Quantité de commande min: 30KG

Prix: negotiate

Détails d'emballage: Carton

Délai de livraison: 2-3 semaines

Capacité d'approvisionnement: 5000 tonnes par an

Obtenez le meilleur prix
Contactez-nous maintenant
Les spécifications
Mettre en évidence:
Matériel:
manganine 47
Modèle:
6J12
Forme:
fil/bande/feuille
Densité:
8.4g/cm3
Resisivité:
47μΩ/cm
Élongation:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs Cu μV/℃:
≤1
Matériel:
manganine 47
Modèle:
6J12
Forme:
fil/bande/feuille
Densité:
8.4g/cm3
Resisivité:
47μΩ/cm
Élongation:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs Cu μV/℃:
≤1
Définition
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
