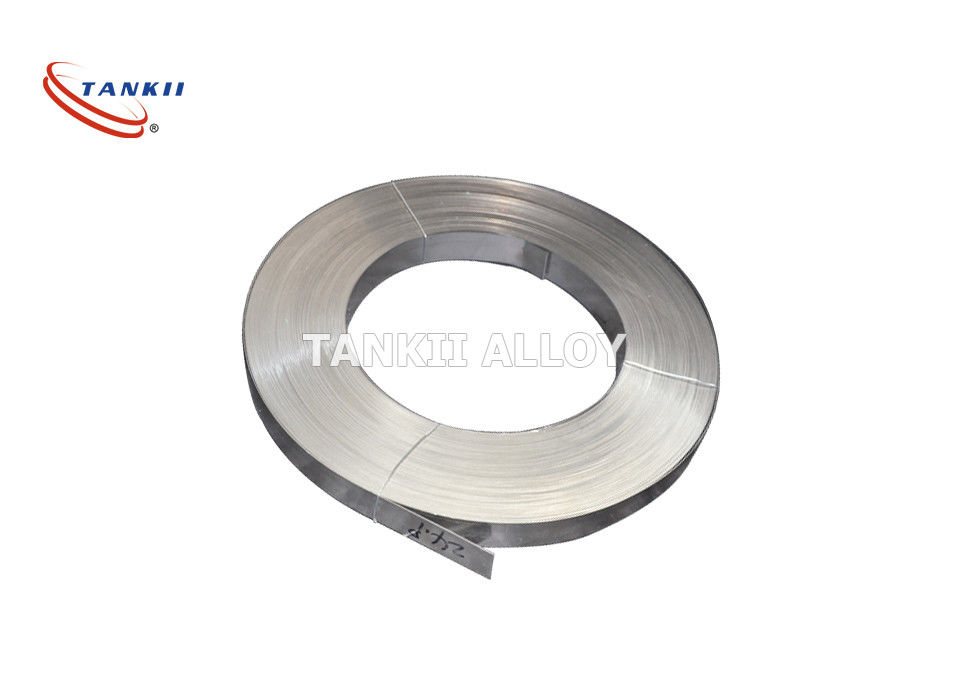

0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars

Name: 0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel 200
Price: 29.00 USD
Availability: InStock

Détails de produit

Place of Origin: CHINA

Nom de marque: TANKII

Certification: ISO9001

Model Number: Nickel 200

Conditions de paiement et d'expédition

Minimum Order Quantity: 10kg

Prix: USD28-30/kg

Packaging Details: usually packed on the spool, film cover on the wire, all the spool putted in the carton, then put the carton on the wooden pallet or in the wooden case

Delivery Time: 7-10 Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200ton/Year

Obtenez le meilleur prix

Contactez-nous maintenant

Les spécifications

Définition

Les spécifications

Mettre en évidence:

Material:	pure nickel	shape:	round wire
color:	bright	temper:	soft
package:	packed on the spool	Application:	fuse in the lighting
Density:	8.9	Melting Point:	1453
Boiling Point:	2732

Material:	pure nickel
shape:	round wire
color:	bright
temper:	soft
package:	packed on the spool
Application:	fuse in the lighting
Density:	8.9
Melting Point:	1453
Boiling Point:	2732

Définition

0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars

0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars

It has good mechanical strength,corrosion-resistant and heat-resistance strength.

Chemical Composition

Grade	Element Composition/%
Grade	Ni+Co	Mn	Cu	Fe	C	Si	Cr	S
Ni201	≥99.0	≤0.35	≤0.25	≤0.30	≤0.02	≤0.3	≤0.2	≤0.01
Ni200	≥99.0	/≤0.35	≤0.25	≤0.30	≤0.15	≤0.3	≤0.2	≤0.01

Propertis

Grade	Density	Melting point	Coefficient of expansion	Modulus of rigidity	Modulus of elasticity	Electrical resistivity
Ni200	8.9g/cm3	1446°C	13.3 µm/m °C (20-100°C)	81kN/mm2	204kN/mm2	9.6μW• cm
Ni201	8.9g/cm3	1446°C	13.1µm/m °C(20-100°C)	82kN/mm2	207kN/mm2	8.5μW• cm

Diameter(mm)	Tolerance(mm)	Diameter(mm)	Tolerance(mm)
0.03-0.05	±0.005	>0.50-1.00	±0.02
>0.05-0.10	±0.006	>1.00-3.00	±0.03
>0.10-0.20	±0.008	>3.00-6.00	±0.04
>0.20-0.30	±0.010	>6.00-8.00	±0.05
>0.30-0.50	±0.015	>8.00-12.0	±0.4

Specification of Cold-drawing Strip Type

Thickness(mm)	Tolerance(mm)	Width(mm)	Tolerance(mm)
0.05-0.10	±0.010	5.00-10.0	±0.2
>0.10-0.20	±0.015	>10.0-20.0	±0.2
>0.20-0.50	±0.020	>20.0-30.0	±0.2
>0.50-1.00	±0.030	>30.0-50.0	±0.3
>1.00-1.80	±0.040	>50.0-90.0	±0.3
>1.80-2.50	±0.050	>90.0-120.0	±0.5
>2.50-3.50	±0.060	>120.0-250.0	±0.6

Do you need a different steel quality or dimension? Please write to us. Our sales team makes an offer from stock program or delivery program :)

Length tolerance +/-2mm

Description:

Production time - 5-7 weeks.
Preparation for shipment - 2-3 working days.
Look at the FAQ please.

radio and electrical engineering (electrical and electronic components);
Vehicle construction;
medical technology;
Domestic appliances;
Food industry (handling of cooling brine, fatty acids and fruit juices).

Wire made of nickel is characterized by the following properties:

high electrical and thermal conductivity;
good temperature resistance (up to 300 °C);
high ductility;
excellent resistance to alkaline and corrosive media;
good mechanical properties (easily polished, welded and forged);

excellent acid resistance.

0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars 0
