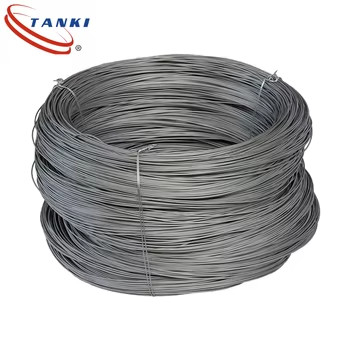

FeCrAl Alloy KSC Furnace Wire for High-Temperature Heating

Détails de produit

Place of Origin: China

Nom de marque: TANKII

Certification: ISO9001

Model Number: KSC

Conditions de paiement et d'expédition

Minimum Order Quantity: 20kg

Prix: Négociable

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Obtenez le meilleur prix

Contactez-nous maintenant

Les spécifications

Définition

Les spécifications

Mettre en évidence:
                                                                                    FeCrAl alloy furnace wire, high-temperature heating wire, KSC FeCrAl heating element


Définition

FeCrAl Alloy KSC Furnace Wire for High-Temperature Heating

Leader Resistance Heating Alloy KSC Furnace Wire for Precision Furnace Heating

Grade	Highest temperature	Resistivity	Melting point	Tensile strength	Elongation
0Cr21Al4	1100ºC	1.23±0.06μΩ.m	1500ºC	750	≥12
0Cr25Al5	1250ºC	1.42±0.07μΩ.m	1500ºC	750	≥12
0Cr23Al5	1300ºC	1.35±0.06μΩ.m	1500ºC	750	≥12
0Cr21Al6NbCo	1350ºC	1.43±0.07μΩ.m	1510ºC	750	≥12
0Cr27Al7Mo2	1400ºC	1.53±0.07μΩ.m	1520ºC	750	≥10
KSC	1350ºC	1.44±0.05μΩ.m	1510ºC	750	≥16
Cr20Ni80	1200ºC	1.09±0.05μΩ.m	1400ºC	750	≥20
Cr15Ni60	1150ºC	1.12±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni35	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni30	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20

Grade	Chemical composition%
	C	P	S	Mn	Si	Cr	Ni	Al	Fe
	≤				Si	Cr	Ni	Al	Fe
0Cr21Al4	0.12	0.025	0.025	0.7	≤1.0	17-21	≤0.6	3-4	balance
0Cr25Al5	0.06	0.025	0.02	0.5	≤0.6	23-26	≤0.6	4.5-6.5	balance
0Cr23Al5	0.06	0.025	0.02	0.5	≤0.6	20.5-23.5	≤0.6	4.2-5.3	balance
0Cr21Al6Nb	0.05	0.025	0.02	0.5	≤0.6	21-23	≤0.6	5-7	balance
0Cr27Al7Mo2	0.05	0.025	0.02	0.2	≤0.4	26.5-27.8	≤0.6	6-7	balance
Cr20Ni80	0.08	0.02	0.015	0.6	0.75-1.6	20-23	balance	<0.5	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6	0.75-1.6	15-18	55-61	<0.5	balance
Cr20Ni35	0.08	0.02	0.015	1.0	1-3	18-21	34-37	-	balance
Cr20Ni30	0.08	0.02	0.015	1.0	1-3	18-21	30-34	-	balanc

Grade	Highest temperature	Resistivity	Melting point	Tensile strength	Elongation
0Cr21Al4	1100ºC	1.23±0.06μΩ.m	1500ºC	750	≥12
0Cr25Al5	1250ºC	1.42±0.07μΩ.m	1500ºC	750	≥12
0Cr23Al5	1300ºC	1.35±0.06μΩ.m	1500ºC	750	≥12
0Cr21Al6NbCo	1350ºC	1.43±0.07μΩ.m	1510ºC	750	≥12
0Cr27Al7Mo2	1400ºC	1.53±0.07μΩ.m	1520ºC	750	≥10
KSC	1350ºC	1.44±0.05μΩ.m	1510ºC	750	≥16
Cr20Ni80	1200ºC	1.09±0.05μΩ.m	1400ºC	750	≥20
Cr15Ni60	1150ºC	1.12±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni35	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni30	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20

Grade	Chemical composition%
	C	P	S	Mn	Si	Cr	Ni	Al	Fe
	≤				Si	Cr	Ni	Al	Fe
0Cr21Al4	0.12	0.025	0.025	0.7	≤1.0	17-21	≤0.6	3-4	balance
0Cr25Al5	0.06	0.025	0.02	0.5	≤0.6	23-26	≤0.6	4.5-6.5	balance
0Cr23Al5	0.06	0.025	0.02	0.5	≤0.6	20.5-23.5	≤0.6	4.2-5.3	balance
0Cr21Al6Nb	0.05	0.025	0.02	0.5	≤0.6	21-23	≤0.6	5-7	balance
0Cr27Al7Mo2	0.05	0.025	0.02	0.2	≤0.4	26.5-27.8	≤0.6	6-7	balance
Cr20Ni80	0.08	0.02	0.015	0.6	0.75-1.6	20-23	balance	<0.5	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6	0.75-1.6	15-18	55-61	<0.5	balance
Cr20Ni35	0.08	0.02	0.015	1.0	1-3	18-21	34-37	-	balance
Cr20Ni30	0.08	0.02	0.015	1.0	1-3	18-21	30-34	-	balanc
