SS304 Braiding Extension Cable
, 2*1.5mm Extension Cable
, Glass Fiber Thermocouple Cable

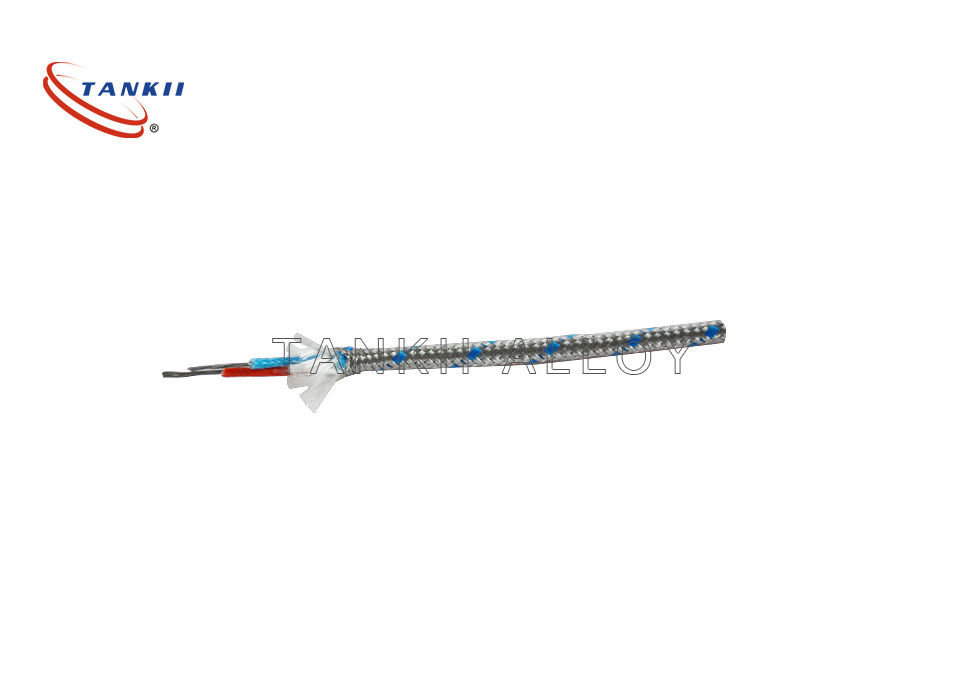

2*1.5mm JX KX Glass Fiber SS304 Braiding Extension Cable
2*1.5mm Glass Fiber JX /KX Extension Cable With SS304 Braiding
A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.
2*1.5mm Glass Fiber JX /KX Extension Cable With SS304 Braiding
TYPE KX or KC wire used for extension or compensation thermocouple cable.
Detailed Description
| Conductor Name |
Type |
Applicable thermocouple type |
| Cu-Constantan0.6 |
SC or RC |
S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) |
KCA KCB KX |
K |
| Iron-constantan18 NiCr14Si-NiSi4Mg |
NC NX |
N |
| NiCr10-Constantan45 |
EX |
E |
| Iron-Constantan 45 |
JX |
J |
| Copper-Constantan 45 |
TX |
T |
2*1.5mm Glass Fiber JX /KX Extension Cable With SS304 Braiding
Properties of insulation materials
| Material Type |
Continuous Operating Temp. / ℃ |
Abrasion Resistance |
Chemical Resistance |
Moisture Resistance |
Solvent Resistance |
Flame Resistance |
| PVC |
105 |
Very Good |
Very Good |
Good |
Fair |
Excellent |
| SILICONE |
200 |
Good |
Good |
Excellent |
Excellent |
Excellent |
| FEP |
200 |
Excellent |
Excellent |
Excellent |
Excellent |
Excellent |
| PFA |
260 |
Excellent |
Excellent |
Excellent |
Excellent |
Excellent |
| PTFE |
260 |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
| B-GLASS FIBER |
260 |
Good |
Good |
Fair |
Good |
Good |
| G-GLASS FIBER |
510 |
Poor |
Good |
Good |
Excellent |
Excellent |
| Q-GLASS FIBER |
704 |
Fair |
Good |
Good |
Excellent |
Excellent |
| VITREOUS SILICA FIBER |
1100 |
Good |
Good |
Excellent |
Excellent |
Excellent |
| MINERAL INSULATION* |
1100 |
Excellent |
Excellent |
Good |
Excellent |
Excellent |
International Color code:
Packaging & Delivery
| Packaging Details |
Roll with plastic film wrapped and carton package |
| Delivery Detail |
Shipped in 7 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
2*1.5mm Glass Fiber JX /KX Extension Cable With SS304 Braiding
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.
2*1.5mm Glass Fiber JX /KX Extension Cable With SS304 Braiding
Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
